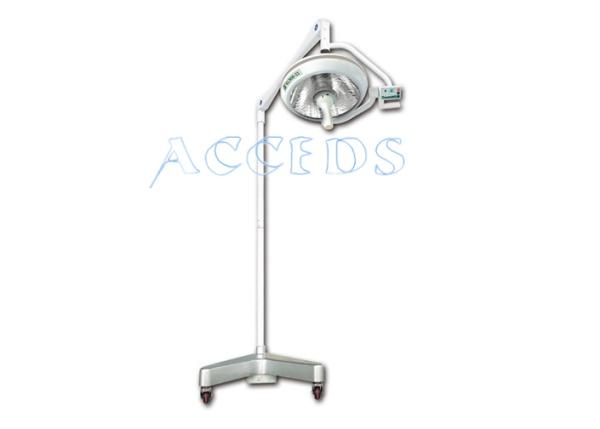

500-II(AC/DC)
Shadowless Lamp
500-II (AC/DC) shadowless lamps meet the requirements for all circumstances of surgical operations. It is an ideal lighting facility for modern surgical operations.
Reflector system designed in CAD; color temperature close to that of sunlight; making the tissue surface visible under natural color; depth of tubular light beams up to over 700mm; uniform illumination effectively eliminating shadows under any circumstance.
Special heat-isolated radiation filter reduces heat to the minimum level.
KL500-II (AC/DC)rippled panel made of shock-resistant .
Light adjustment circuit adopts CPU control; and the illumination has increase or decrease and has illumination memory.
One lamp holder with two bulbs; the standby lamp will start operation within 1/2 second when the major one malfunctions, ensuring the continuation of surgical operation.Handle panel has indicator for the damage of major and standby lamps.Major and standby bulbs can be changes easily; dischargeable handle sheath can be sterilized in steam sterilizer. The stand type device which can move with skid is very convenient and isn’t limited by the operation field. At the same time, it also can match the DC current to use.( Handing over the direct current power box is to chooses the accessories.)
Tungsten halogen bulbs of international brand are adopted with the average service life up to 1500 hours.
Technical Specifications:
Illumination Lx(at the distance of 1m)
160000 ≥ Ec ≥80000
Color Temperature 4500±500
Diameter of Spot d10175±35mm
Depth of light beam ≥700
Brightness adjustment CPU light-dimmer
The value of the total irradiance <6mW/㎡Ix
Diameter of lamp holder 500
Shift of major and stand by lamps Automatic
Bulb power 150
Power supply 220±10% 50Hz
Input power 200
